7 Inch Mini Monitor HDMI, Portable Vga Monitor with AV BNC 1024×600 LCD Screen with Built-in Speakers,IPS Multi-Function Small Display for Raspberry Pi PC/TV/DVD/CVBS

Price: $37.99 - $36.09
(as of Aug 21, 2025 04:04:31 UTC – Details)

Product description

JniTyOpt HD Monitor 7 Inch Type-C/DC/AV/VGA Display 1024 * 600 Resolution for Raspberry Pi 4/3 Model B/3B+/BB Black/Banana Pi,Work as Computer Monitor

EM713-D

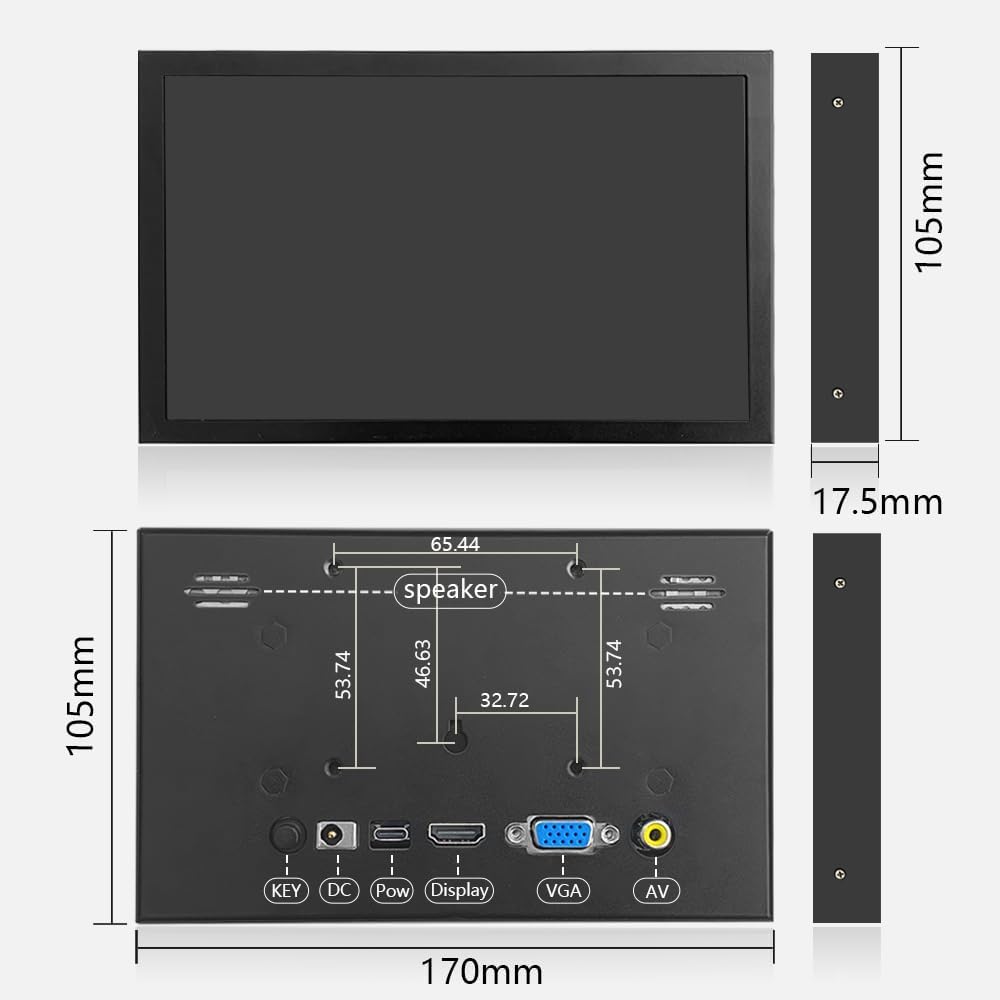

Size 7inch Resolution 1024*600 Outline Dimension 170*105.0*17.5（MM） Active Area Dimension 154.08*85.92（MM） Pixel Pitch Dimension 0.18*0.18（MM） Brightness 500cd/㎡ Power Consumption 3.8W Touch Panel NON-TOUCH View Angle Full View Model EM713-D Power supply TYPE-C/DC data input HDMI/VGA/AV

IPS full viewing angle

178° full viewing angle IPS panel will proides vivid and sharp image horizontally and vertically. You can enjoy realistic picture quality compared to TN monitor.

Brighter colors

800:1 contrast ratio, made of high configuration glass for better color display

Multi positioning hole design

The bottom has a 1/4 hole position, suitable for most camera holders and tripod mounting brackets, allowing your product to stand and use

Support audio playback

Equipped with two built-in speakers, it automatically plays from your device when the audio output is on the HDMI interface

Smaller

7-inch product, compact in size, easier to carry

The power supply method is simpler

Type-C port can be used for power supply, 5V1A or 5V2A, and an external power supply can also be used

Connecting a computer

Display resolution supports 1080PCopy/Expand/One Display Three ModesTYPE+HDMI ;TYPE-C+VGASupport directional rotationSupport audio playback（Set sound to HDMI output on the computer）

Connecting the camera

Resolution 1024 * 600Display only on the monitorConnect via adapterUnable to perform directional rotationAudio playback not supported

Raspberry Pi/Orange Pi and other series motherboards

Display resolution supports 1080PDisplayed on the monitorConnect type-c and HDMI cables（Raspberry Pi Generation 4 requires adapter connection）Support directional rotationSupport audio playback（Set sound to HDMI output on the motherboards）

TV BOX

Resolution 1024 * 600Display only on the monitorTYPE-C+HDMI；DC+HDMIUnable to perform directional rotationSupport audio playback

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.2 out of 5 stars 4

4.1 out of 5 stars 10

4.1 out of 5 stars 46

—

—

Price

$39.99$39.99 $34.19$34.19 $36.09$36.09
— no data
$62.99$62.99

Size
7 inch 5 inch 7 inch 15.6 inch 10.1 inch

Touch Screen
5-point touch NONE NONE 10-point touch 5-point touch

Resolution
1024*600 1024*600 1024*600 1920*1080 1024*600

Display Technology
IPS IPS IPS IPS IPS

Hardware Interface
TYPE-C/MINI HDMI TYPE-C/MINI HDMI TYPE-C/DC/HDMI/VGA/AV TYPE-C/MINI HDMI TYPE-C/MINI HDMI

Audio playback
Built in speaker NONE Built in speaker Built in speaker Built in speaker/3.5mm Audio

sRGB
50% 100% 50% 65% 50%

Refresh rate
60Hz 60Hz 60Hz 60Hz 60Hz

Multifunctional Mini Monitor: This 7 inch monitor supports HDMI, VGA, AV, and BNC inputs, making it a versatile portable monitor for various project. (Note: BNC connects only to CVBS cameras)
HD Small Screen: With 1024×600 resolution,maximum support for 1920 * 1080 resolution.178° IPS viewing angle, this mini display delivers clear and vibrant visuals, enhancing the tiny monitor experience. (Note: Built-in speakers only, no extra audio output.Unable to adjust volume)
Compact & Durable: The portable VGA monitor features a sturdy aluminum shell, scratch-resistant and lightweight. Adjustable brightness ensures visibility in any environment.
Flexible Power Options: Powered via DC (12V/1A) or Micro USB (5V/2A), it works with power banks, enhancing portability for Raspberry Pi, laptops, and other project.(Only USB to Type-C cables are provided for shipment)
More Usage Scenarios: It can be used as a security system monitor, for Raspberry Pi, cameras, laptops, PCs, CCTV systems, rearview camera monitors, and as a monitor for CCD, DVD, DVR, cameras, etc. It can also be used as a small video monitor LCD display in a studio for live streaming.
